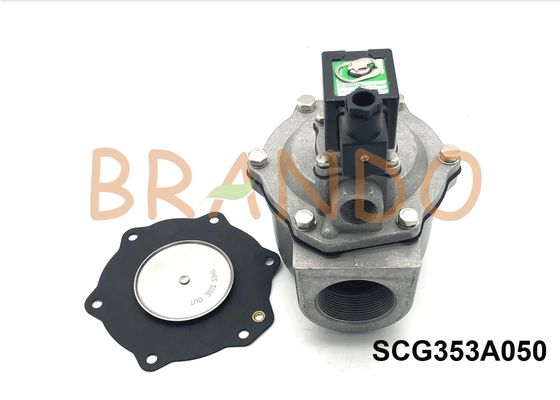

Alloy Integral Pilot Solenoid Pulse Jet Valves SCG353A050 Normal Close 2 Inch

Alloy Integral Pilot Solenoid Pulse Jet Valves SCG353A050 Normal Close 2 Inch

    • Alloy Integral Pilot Solenoid Pulse Jet Valves SCG353A050 Normal Close 2 Inch
    • Alloy Integral Pilot Solenoid Pulse Jet Valves SCG353A050 Normal Close 2 Inch
    • Alloy Integral Pilot Solenoid Pulse Jet Valves SCG353A050 Normal Close 2 Inch
    • Alloy Integral Pilot Solenoid Pulse Jet Valves SCG353A050 Normal Close 2 Inch
  • Alloy Integral Pilot Solenoid Pulse Jet Valves SCG353A050 Normal Close 2 Inch

    Product Details:

    Place of Origin: CHINA
    Brand Name: BRANDO
    Certification: ISO,CE
    Model Number: SCG353A050

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: Box,Carton
    Delivery Time: 5 work days
    Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 10000 pcs per month
    Contact Now
    Detailed Product Description
    Port Size: 2" Material: Alloy
    Media: Gas,Air Power: Solenoid
    Pressure: Medium Pressure Structure: Diaphragm

    Normal Close 2" Inch Alloy Integral Pilot Solenoid Pulse Jet Valve SCG353A050



    The 353 series is a two-position normally closed, internal pilot type two-stage pulse diaphragm valve. The valve body is made of aluminum and has a threaded connection port.,The pipe connection must match the parameters indicated on the product nameplate.

    Note

    Reducing the diameter of the pipe may cause the solenoid valve to malfunction or malfunction.

    To protect the solenoid valve, install the appropriate strainer or filter as close as possible to the inlet end.



    Used for bag house dust collector

    Working pressure:0.4~0.6MPa

    Working medium: Compressed clean air

    Voltage:DC24V, AC24V, AC110V, AC220V/50HZ

    Temperature:-10°C~55°C

    The relative humidity of air not exceeding 85%

    Service life of diaphragm:1 million times



    Dimension of Pulse Valve

    Alloy Integral Pilot Solenoid Pulse Jet Valves SCG353A050 Normal Close 2 Inch

    Type Port Size Orifice(mm) Kv/Cv Pressure
    M3/h I/min Mix Max
    SCG353A047 1 1/2" 52 46 768 0.35 8.5
    SCG353A050 2" 66 77 1290 0.35 8.5
    SCG353A051 2 1/2" 66 92 1540 0.35 8.5
    SCG353B060 3" 75 170 2833 1 6



    Other Size of Pulse Jet Valve

    Alloy Integral Pilot Solenoid Pulse Jet Valves SCG353A050 Normal Close 2 Inch

    Delivery

    Alloy Integral Pilot Solenoid Pulse Jet Valves SCG353A050 Normal Close 2 Inch



    Precautions for use

    1. If the raw material tape, paste, lubricant is used when it is fixed. To prevent their particles from entering the system.
    2. Use the correct tool and use the installation tool as much as possible at the connection point.
    3. To prevent damage to the solenoid valve, do not over-tighten the pipe.
    4. Do not use the valve body or coil as a lever.
    5. The pipe cannot be connected to any force, bend or deformation after the pipe is connected.
    6. If electrical connections are made, they must be performed by trained personnel and must comply with local regulations and standards. All electrical screw terminals must be properly secured to standard before use. Depending on the voltage, electrical components must be grounded and must comply with local codes and standards.

    7. Perform an electrical test first before applying pressure to the system. Power on the solenoid valve a few times, pay attention to whether you can hear the metal click that indicates the normal operation of the solenoid valve.
    8. Most solenoid valves are equipped with coils that allow them to operate continuously. In order to prevent personal injury or property damage, please do not touch the solenoid valve because it will generate heat under normal working conditions. If the solenoid valve is easily accessible, the installer must provide protection against accidents caused by contact.



    please care the products details at our website, any confuse please contact us or Note your request online. Big quantity purchase ,please contact our online service to ask more economic shipping way or discuss the more pretty price.
