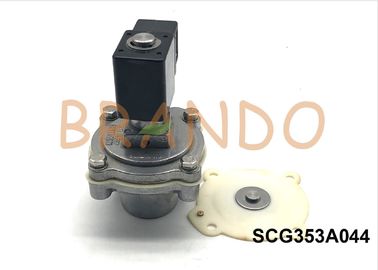

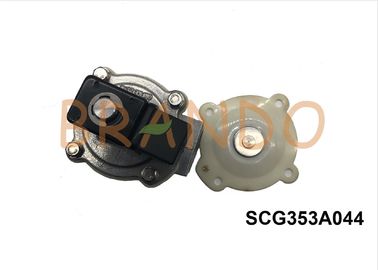

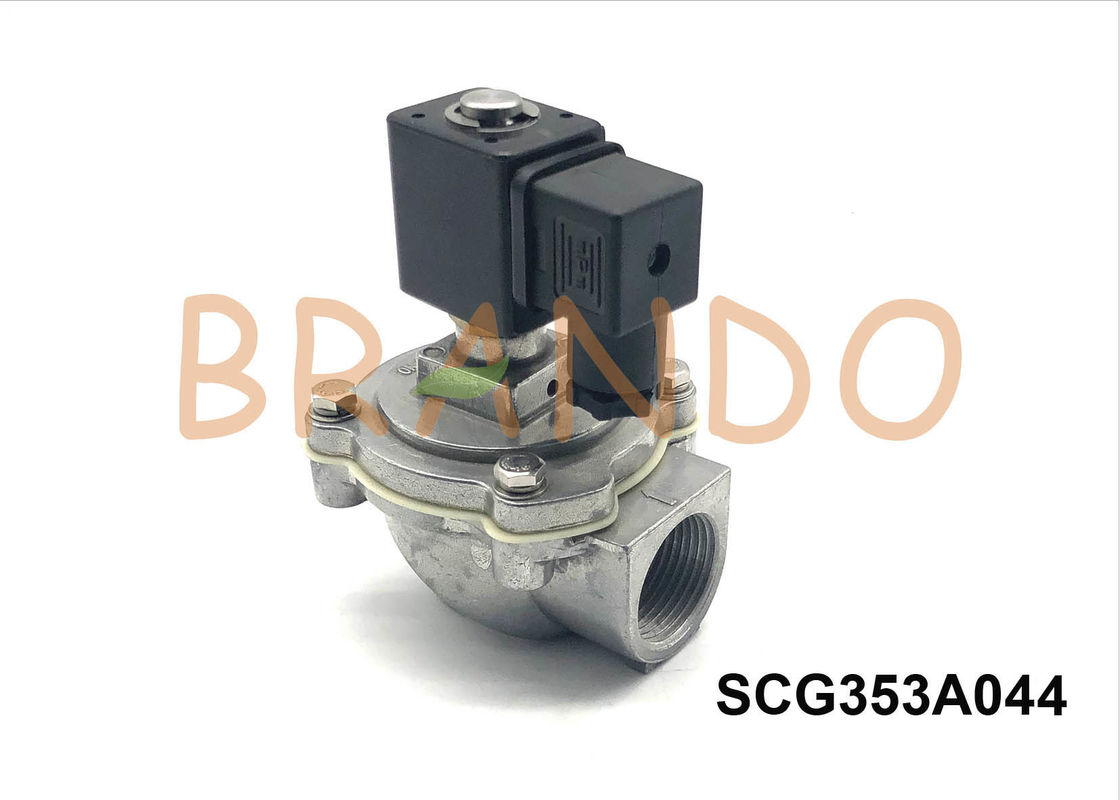

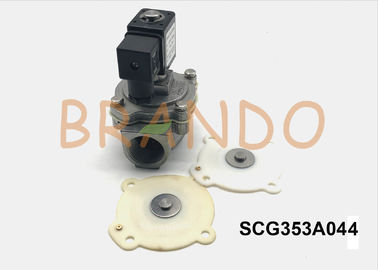

1 Inch Angle Seat Pneumatic Pulse Valve For Dedusting System SCG353A044

1 Inch Angle Seat Pneumatic Pulse Valve For Dedusting System SCG353A044

    • 1 Inch Angle Seat Pneumatic Pulse Valve For Dedusting System SCG353A044
    • 1 Inch Angle Seat Pneumatic Pulse Valve For Dedusting System SCG353A044
    • 1 Inch Angle Seat Pneumatic Pulse Valve For Dedusting System SCG353A044
    • 1 Inch Angle Seat Pneumatic Pulse Valve For Dedusting System SCG353A044
  • 1 Inch Angle Seat Pneumatic Pulse Valve For Dedusting System SCG353A044

    Product Details:

    Place of Origin: CHINA
    Brand Name: BRANDO
    Certification: ISO,CE
    Model Number: SCG353A044

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: Box,Carton
    Delivery Time: 5 work days
    Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 10000 pcs per month
    Contact Now
    Detailed Product Description
    Port Size: 1" Material: Stainless Steel
    Application: Dedusting Pressure: Medium Pressure
    Structure: Diaphragm,Control Product Name: Pulse Valve,Pulse Jet Pneumatic Diaphragm Valve For Dedusting Use
    Working Medium: Air,gas Color: Sliver

    1" Inch Angle Seat Pneumatic Pulse Valve For Dedusting System SCG353A044



    Our factory specializes in the production of various pulse valves and accessories (diaphragm, coil, pilot head, spring, etc.), this pulse valve is made of copper coil, stainless steel plate diaphragm, high quality pilot head, aluminum alloy valve body. Good durability and corrosion resistance, and we can provide AC110V, AC220V, DC12V, DC24V voltage for your choice.we provide a certain guarantee for the quality of the product.



    The solenoid valve consists of two basic functional units: an electromagnetic coil and a magnetic core. A valve body containing one or several holes. When the electric coil is energized or de-energized, operation of the core will cause fluid to pass through the valve body or be severed. The solenoid is mounted directly on the valve body and the core is enclosed in a sealed tube to form a compact, compact combination.



    Specification of SCG353A044 Pulse Jet Valve

    Working Pressure 0.3~0.8Mpa
    Ambient Temperature -5~50'C
    Relatively Humidity <85%
    Working Medium Clean Air
    Voltage AC110V / AC220V / DC24V
    Diaphragm life cycles Over 1000k Cycles
    Production Class IP65
    Spring 321 Stainless Steel
    Diaphragm NBR or VITON
    Body Material Aluminum-alloy Die Casting



    Size of  the Pulse Valve

    Type Port Size Orifice(mm) Kv/Cv Pressure
    M3/h I/min Mix Max
    SCG353A043 3/4" 25 14 233 0.3 8.5
    SCG353A044 1" 25 23 283 0.3 8.5
    SCG353A047 1 1/2" 52 46 768 0.35 8.5
    SCG353A050 2" 66 77 1290 0.35 8.5
    SCG353A051 2 1/2" 66 92 1540 0.35 8.5
    SCG353B060 3" 75 170 2833 1 6



    Dimension Drawing of Pulse Valve

    1 Inch Angle Seat Pneumatic Pulse Valve For Dedusting System SCG353A044

    Ordering Code A B C D E F G H J K Weight
    SCG353A043 75 45 27 51 89 75 39 92 113 130 0.7
    SCG353A044 75 45 27 51 168 75 39 92 113 130 0.65



    Other Size of Pulse and Armature

    1 Inch Angle Seat Pneumatic Pulse Valve For Dedusting System SCG353A044

    Professional Factory

    1 Inch Angle Seat Pneumatic Pulse Valve For Dedusting System SCG353A044



    Selection principle

    safety



    1. Corrosive medium: Plastic King solenoid valve and all stainless steel should be used; for strong corrosive medium, isolation diaphragm type must be used. Neutral medium, it is also advisable to use copper alloy as the solenoid valve of the valve shell material. Otherwise, the rust will often fall off in the valve shell, especially in occasions with infrequent movement. Ammonia valves cannot be made of copper.
    2. Explosive environment: The corresponding explosion-proof grade products must be selected. For outdoor installation or dusty occasions, waterproof and dustproof varieties should be used.
    3. The nominal pressure of the solenoid valve should exceed the maximum working pressure in the pipe.



    reliability



    1. Working life, this item is not included in the factory test project and belongs to the type test project. In order to ensure the quality, we should choose the famous brand products of regular manufacturers.
    2. Work system: divided into long-term work system, repeated short-time work system and short-term work system. For long-time valve opening only when the time is closed, the normally open solenoid valve should be used.
    3. Working frequency: When the operating frequency is high, the structure should be a direct-acting solenoid valve, and the power supply should be preferably AC.



    Economic



    Economics is not only the price of the product, but also the cost and quality of the product, as well as the cost of installing repairs and other accessories.
    More importantly, the cost of a solenoid valve in the entire automatic control system in the entire automatic control system and even in the production line is negligible. If the coupry is small and cheap, the damage caused by the wrong group is huge.



    please care the products details at our website, any confuse please contact us or Note your request online. Big quantity purchase ,please contact our online service to ask more economic shipping way or discuss the more pretty price.



    Welcome our inquiry!
