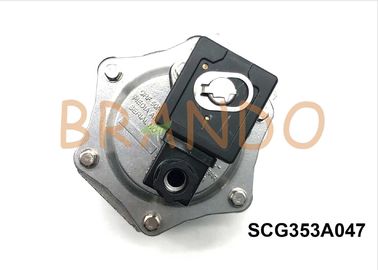

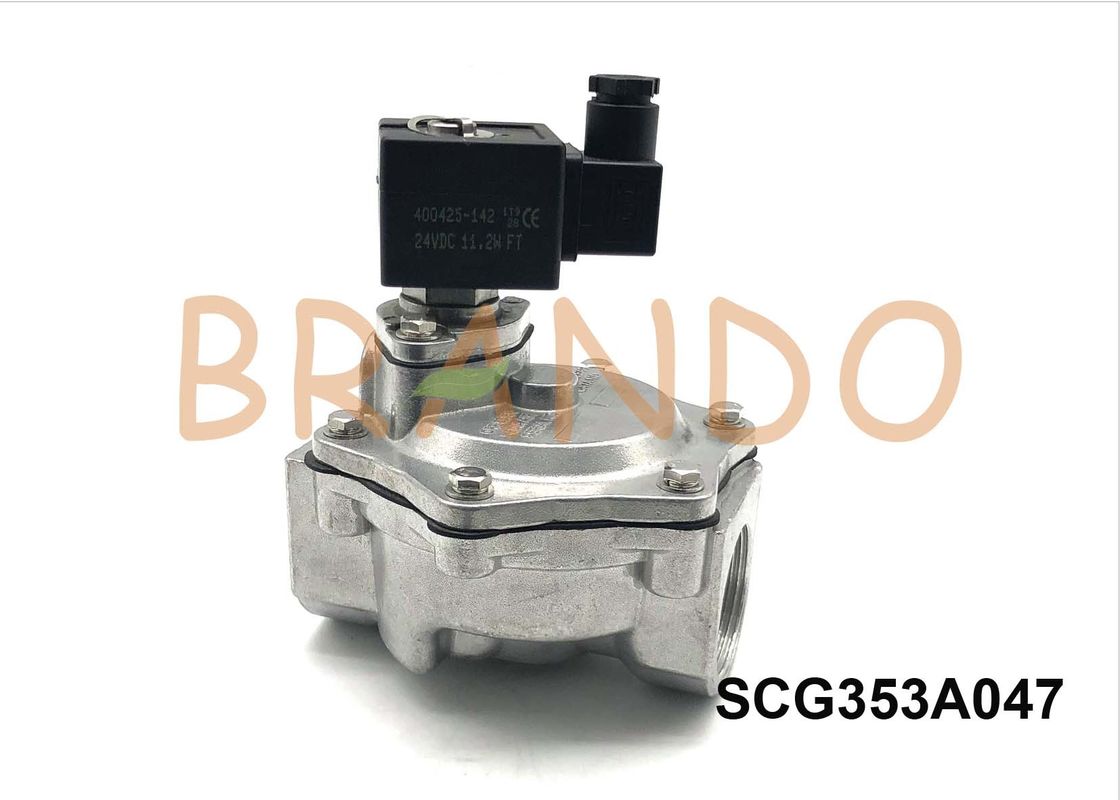

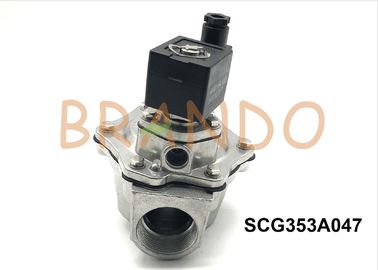

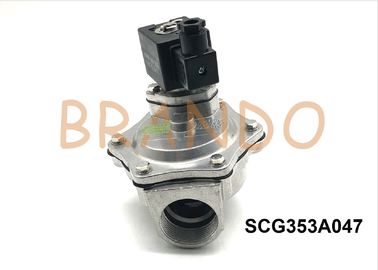

Air Cleaning Aluminum Pneumatic Pulse Valve 1 1/2" SCG353A047 Dedusting System

Air Cleaning Aluminum Pneumatic Pulse Valve 1 1/2" SCG353A047 Dedusting System

    • Air Cleaning Aluminum Pneumatic Pulse Valve 1 1/2" SCG353A047 Dedusting System
    • Air Cleaning Aluminum Pneumatic Pulse Valve 1 1/2" SCG353A047 Dedusting System
    • Air Cleaning Aluminum Pneumatic Pulse Valve 1 1/2" SCG353A047 Dedusting System
    • Air Cleaning Aluminum Pneumatic Pulse Valve 1 1/2" SCG353A047 Dedusting System
  • Air Cleaning Aluminum Pneumatic Pulse Valve 1 1/2" SCG353A047 Dedusting System

    Product Details:

    Place of Origin: CHINA
    Brand Name: BRANDO
    Certification: ISO
    Model Number: SCG353A047

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: negotiation
    Packaging Details: Box,Carton
    Delivery Time: 5 Days
    Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 9999 pcs per month
    Contact Now
    Detailed Product Description
    Port Size: 1 1/2" Material: Aluminum
    Media: Gas,Air Application: Dedusting
    Structure: Diaphragm Voltage: AC110V/AC220V/DC24V

    Dedusting System 1 1/2 inch Air Cleaning Aluminum Pulse Jet Valve SCG353A047



    Electromagnetic pulse valves are mainly used in dust removal and clean air manufacturers such as cement plants, steel plants, smelters, chemical plants, power plants, asphalt mixing plants.



    Characteristic of SCG353A047

    1.High flow, long life, fast switching and switching features

    2.Angled valve body, no spring construction, special diaphragm assembly gives the unique operating characteristics required for dust removal equipment applications

    3.Integrated spin-on joint design for easy installation without threaded tubing

    4.Built-in silencer, low noise, avoiding foreign matter entering the valve body



    Specification

    Working Pressure 0.3~0.85Mpa
    Working Medium Clear air
    Spring material stainless steel
    Body material die-cast aluminium



    Model SCG353A043 SCG353A044 SCG353A047 SCG353A050 SCG353A051
    Orifice(mm) 25 25 52 66 66
    Port Size G3/4” G1” G1 1/2” G2” G2 1/2”
    Working pressure 0.3-0.8MPa
    Ambient Temperature For -5~50℃



    Dimension Drawing of Pulse Valve

    Air Cleaning Aluminum Pneumatic Pulse Valve 1 1/2" SCG353A047 Dedusting System

    Air Cleaning Aluminum Pneumatic Pulse Valve 1 1/2" SCG353A047 Dedusting System

    Diaphragm of SCG353A047

    Air Cleaning Aluminum Pneumatic Pulse Valve 1 1/2" SCG353A047 Dedusting System

    Use of electromagnetic pulse valve

    1. It is generally installed in the main oil circuit or the damper back pressure oil circuit to reduce the oil pressure at the moment of automatic gear upshift and downshift of the transmission or when the lockup clutch locks and unlocks the lock operation to reduce the oil pressure. The gears and locks unlock the impact, making the vehicle run more balanced. The function of the pulse solenoid valve is to control the oil pressure in the oil passage.

    2, the so-called solenoid valve working principle, the solenoid valve has a closed cavity, there are through holes in different positions, each hole leads to a different oil pipe, the middle of the cavity is a valve, two sides are two electromagnets, which The surface of the magnet coil is attracted to the side of the valve body, and the movement of the valve body is controlled to block or leak different oil drain holes.

    3. The oil inlet hole is normally open, the hydraulic oil will enter different oil drain pipes, and then the oil pressure will push the piston of the oil just. The piston drives the piston rod again, and the piston piston drives the mechanical device to move. This controls the mechanical motion by controlling the current of the electromagnet.



    Solenoid valves are electromagnetically controlled industrial equipment. They are the basic components for controlling fluids. They are actuators and are not limited to hydraulic and pneumatic.



    please care the products details at our website, any confuse please contact us or Note your request online. Big quantity purchase ,please contact our online service to ask more economic shipping way or discuss the more pretty price.



    Welcome our inquiry!
