    Product Details:

    Place of Origin: CHINA
    Brand Name: Brando
    Certification: CE
    Model Number: MSV-1078/6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Inner Boxes,Cartons,Pallet
    Delivery Time: 4-6 days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 4350 sets per month
    Contact Now
    Detailed Product Description
    Port Size: ODF Material: Brass
    Power: Solenoid Temperature Of Media: -35°C-105°C
    Structure: Pilot Voltage: 110VAC,12VDC,DC24V,AC220V
    Color: Brass Natural Color Medium: R22,R404
    Application: Cooler,Freezer,Condensing Units Type: Normally Close

    MSV-1078/6 ODF 3/4'' Inch Inlet Size Refrigeration Electric Solenoid Valves In Freezer

    Air-cooled and water-cooled units are common in refrigeration equipment because of the difference between heat dissipation and medium. Our MSV-1078/6 G 3/4'' refrigeration solenoid valve is the control element in the unit, and its opening and closing determines the circulation of the refrigerant. Water-cooled water towers are used to dissipate water through water circulation, without metal radiators. Air cooling is to exchange heat between the fan and the radiator to dissipate heat and use the wind to remove heat. If the solenoid valve on such equipment fails, we can provide a high quality EVR/MSV refrigeration solenoid valve or customize it. Other refrigeration accessories are also available. To solve your cooling problem, you can contact us.

    Technical data chart of MSV-1078/6 3/4'' Refrigeration Electromagnetic Valve:

    ModelConnectionDimensionKV
    H1H2L1Q
    InchmmInchmmInchmmInchmm
    MSV-1020/21/4''SAE3.0752.562.52.358  0.175
    MSV-1020/33/8''SAE3.0752.562.52.665  0.23
    MSV-1028/21/4''ODF3.0752.532.54.9125  0.15
    MSV-1028/33/8''ODF3.0752.562.54.9125  0.23
    MSV-1064/33/8''SAE3.2822.769.52.668  0.8
    MSV-1064/41/2''SAE3.2822.769.52.872  0.8
    MSV-1068/33/8''ODF3.2822.769.54.5111  0.8
    MSV-1068/41/2''ODF3.2822.769.55.0127  0.8
    MSV-1070/41/2''SAE3.6913.075.03.91001.8452.2
    MSV-1070/55/8''SAE3.6913.075.04.21061.8452.61
    MSV-1078/41/2''ODF3.6913.075.05.01271.8452.2
    MSV-1078/55/8''ODF3.6913.075.06.91731.8452.61
    MSV-1078/63/4''ODF3.7963.075.07.01791.845
    MSV-1078/91 1/8''ODF4.51153.896.09.82503.18010
    MSV-1078/111 3/8''ODF6.81725.4138.010.92782.86816
    MSV-1090/55/8''SAE4.21063.078.01.71202.2573.8
    MSV-1090/63/4''SAE4.21063.078.04.91242.2574.8
    MSV-1079/77/8''ODF3.6913.075.07.51901.8452.61
    MSV-1079/111 3/8''ODF4.51153.896.011.52923.18010
    MSV-1079/131 5/8''ODF6.81725.4138.010.92782.86816
    MSV-1098/77/8''ODF4.21063.078.07.11802.2575.7
    MSV-1099/91 1/8''ODF4.21063.078.08.52162.2575.7
    MSV1099/111 3/8''ODF6.21575.0127.010.92912.86810

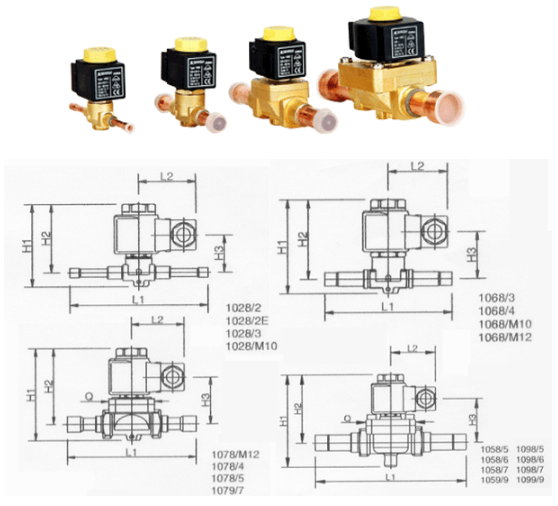

    Main dimension diagram of MSV series Refrigeration Solenoid Valves In Cooler:
    ODF Liquid Solenoid Valve For Refrigeration / Electric Solenoid Valves In Freezer

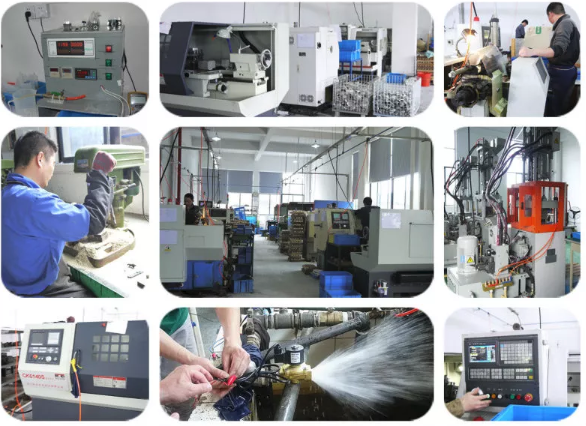

    Production environment of MSV-1078/6 ODF 3/4'' Refrigeration Electric Solenoid Valves In Freezer:
    ODF Liquid Solenoid Valve For Refrigeration / Electric Solenoid Valves In Freezer

    Packing pictures of MSV-1078/6 Brass Refrigerant Controlling Solenoid Valves In refrigeration System:
    ODF Liquid Solenoid Valve For Refrigeration / Electric Solenoid Valves In Freezer

    Structural characteristics of chilled water circulation system with MSV series solenoid valve:
    Cold water machine for the electronics industry and ultrasonic cleaning industry:
    The chiller cools the molecular structure inside the production line of the electronic component, improves the qualification rate of the electronic component, can lower the temperature of the cleaning agent, and condenses the gaseous cleaning agent, thereby effectively preventing the volatilization of the cleaning agent.
    Water chiller for vacuum ion plating industry:
    The ionization source needs to be heated and started during the initial work, and needs to be cooled during operation. The failure of the cooling system will cause damage to the ionization source. The cooling water must be cooled by a high pressure water pump to a cooling channel in the ionization source to cool the ionization source.


    Water-cooled box design:
    The water tank is built in the unit, the movable caster is installed at the bottom, the appearance is beautiful, the installation position and equipment can be changed at will, it can be placed in the production workshop, and the multi-stage energy adjustment is suitable for supporting small and medium-sized production equipment (This model needs to be equipped with a corresponding cooling tower, cooling pump).

    Extruded wire and chiller for pumping industry:
    Obviously, the sink is an open container. Therefore, we should pay attention to the selection of the chiller. The evaporator of the chiller should be shell-and-tube type, and the coil type should not be used. The reason is as follows: The evaporator of the coil type chiller is an open type water tank. When the chiller stops working, the pump has no pressure, and the water level of the water tank is generally higher than that of the chiller. At this time, the water of the water tank will return to the water tank. The water tank of the chiller causes the water tank of the chiller to overflow. The shell and tube type is different, and the evaporator is a closed circuit, there is no problem of overflow.
