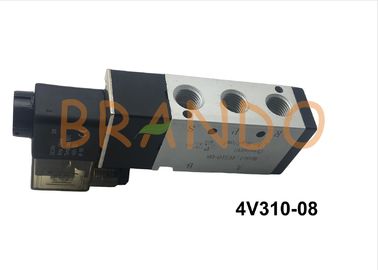

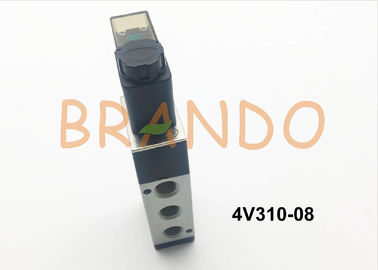

1/4'' 4V300 Series for electrically driven pneumatic power control 4V310-08 made of Aluminum Alloy

1/4'' 4V300 Series for electrically driven pneumatic power control 4V310-08 made of Aluminum Alloy

    • 1/4'' 4V300 Series for electrically driven pneumatic power control 4V310-08 made of Aluminum Alloy
    • 1/4'' 4V300 Series for electrically driven pneumatic power control 4V310-08 made of Aluminum Alloy
    • 1/4'' 4V300 Series for electrically driven pneumatic power control 4V310-08 made of Aluminum Alloy
    • 1/4'' 4V300 Series for electrically driven pneumatic power control 4V310-08 made of Aluminum Alloy
  • 1/4'' 4V300 Series for electrically driven pneumatic power control 4V310-08 made of Aluminum Alloy

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: ISO、CE
    Model Number: 4V310-08

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: USD1.00-8.00 per pc
    Packaging Details: inner boxes,cartons,pallets
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Material: Aluminum Alloy Media: Air
    Port Size: Inlet=outlet=exhaust=1/4'' Temperature Of Media: Normal Temperature
    Connection: Thread(NPT Type: Two-position Five-way Solenoid Valve

    1/4'' 4V300 Series for electrically driven pneumatic power control 4V310-08 made of Aluminum Alloy



    1/4'' 5 Way 2 Position Pneumatic Solenoid Valve Electric Solenoid Valve for Water Air Gas.DC12V 24V,AC24V 110V 220V 380V can be provided.Of course,the special voltage also can be customized.

    Product Name Solenoid Valve
    Model 4V110-06
    Working Medium 40 Micron Filtered Air
    Motion Pattern Inner Guide Type
    Type 2 Position 5 Way
    Material Resin, Plastic
    Working Voltage/Power DC12V,DC24V,AC110V,AC220V
    Temperature Rise 35°C
    Operating Pressure 1.5 ~ 8kgf/cm2
    Effective Area 12mm⊃2;
    Protect Class IP65
    Port Connection Air Inlet =Air Outlet=Exaust =PT 1/8
    Air Inlet/ Exaust Diameter 0.87cm/ 0.34"
    Cable Length 42cm/ 16.5"
    Wiring Form Direct Lead 0Wire or Connector
    Total Size (Approx.) 9.8 x 2.7 x 1.8cm / 3.9" x 1.1" x 0.6" (L * W * T)
    Color White, Black
    Weight 150g
    Package Content 1 x Pneumatic Solenoid Valve

    Drawings for perusal

    1/4'' 4V300 Series for electrically driven pneumatic power control 4V310-08 made of Aluminum Alloy

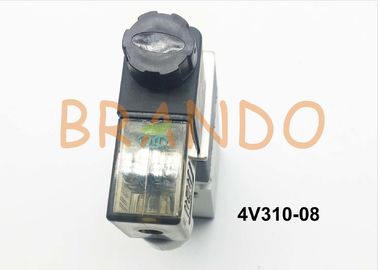

    Different Coil can be available

    1/4'' 4V300 Series for electrically driven pneumatic power control 4V310-08 made of Aluminum Alloy





    Product features of 4V300 series solenoid valve: 1. Pilot mode: internal guide or external guide type optional; 2. Sliding column structure, good sealing and sensitive; 3, three position solenoid valve has three central functions to choose from; 4. The double-headed two-position solenoid valve has a memory function; 5. The inner hole is processed by a special process, the friction resistance is small, and the starting air pressure is low. Long service life; 6, no need to add lubrication; 7, can be integrated with the valve group to save installation space; 8, with manual device, is conducive to installation and commissioning; 9 a variety of standard voltage levels are available for selection.



    Use and maintenance needs to know: To maintain the normal working condition of the pneumatic system, in actual use, the following maintenance work is necessary: ​​1. Check the use pressure, and pay attention to check whether the pressure is normal during the work. 2. Check the compressed air filtration: check the filter regularly, whether the oil mister works normally and whether the pollution condition is normal; 3. Check whether the system piping leaks; 4. Check whether the solenoid valve is slow or not, and whether the exhaust state is normal. 5, check whether the oil mist regulator adjustment is normal; 6, on the electromagnetic valve's air quality, the requirements of the use of the environment, solenoid valve pipeline links and solenoid valve lubrication, please understand the contents of this series of product manuals ; 7, in the case of low frequency use, the valve should be switched regularly, at least once a month!



    Working principle
    There is a close cavity in the solenoid valve, and there are through holes in different positions. Each hole leads to different tubing. There are valves in the middle of the cavity and two electromagnets on both sides. Hydraulic oil enters different drain pipes and then pushes the piston of the cylinder through the pressure of the oil. The piston then drives the piston rod, which drives the mechanical device. In this way, the mechanical movement is controlled by controlling the current of the electromagnet.
