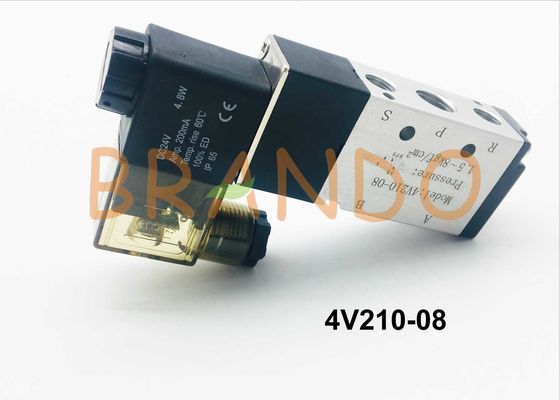

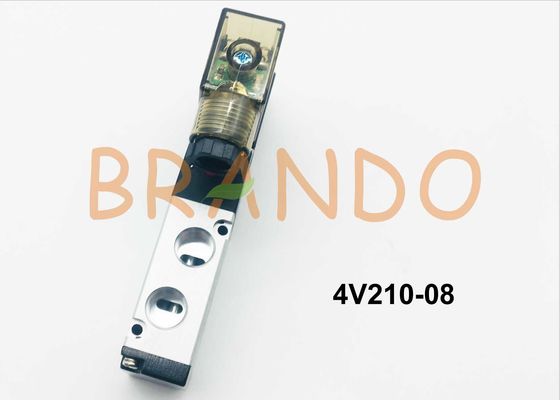

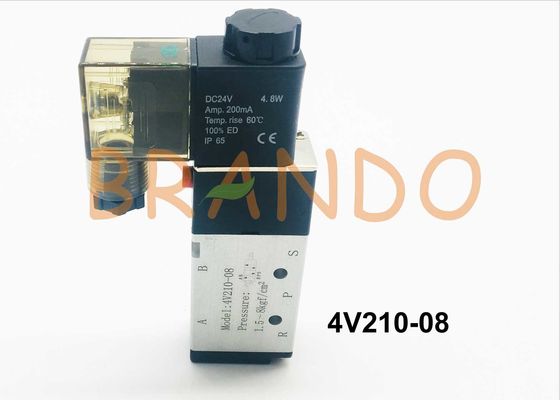

200 Series 1/4'' Pneumatic Cylinder Valve 4V210-08 Working Pressure 0.15-0.8MPa

200 Series 1/4'' Pneumatic Cylinder Valve 4V210-08 Working Pressure 0.15-0.8MPa

    • 200 Series 1/4'' Pneumatic Cylinder Valve 4V210-08 Working Pressure 0.15-0.8MPa
    • 200 Series 1/4'' Pneumatic Cylinder Valve 4V210-08 Working Pressure 0.15-0.8MPa
    • 200 Series 1/4'' Pneumatic Cylinder Valve 4V210-08 Working Pressure 0.15-0.8MPa
    • 200 Series 1/4'' Pneumatic Cylinder Valve 4V210-08 Working Pressure 0.15-0.8MPa
  • 200 Series 1/4'' Pneumatic Cylinder Valve 4V210-08 Working Pressure 0.15-0.8MPa

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: CE、ISO
    Model Number: 4V210-08

    Payment & Shipping Terms:

    Minimum Order Quantity: 3 pc
    Price: USD1.00-5.00 per pc
    Packaging Details: inner boxes,cartons,pallets
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Material: Aluminum Alloy Port Size: 1/4''
    Pressure: Medium Pressure Media: Air
    Connection: Thread(NPT Working Pressure: 0.15-0.8MPa

    200 Series 1/4'' Two-Positon Five-Way Pneumatic Solenoid Control Valve 4V210-08 Working Pressure 0.15-0.8MPa



    The Main Features of 4V210-08 as Follows:

    1. Pilot mode: external and internal optional;
    2, the sliding column structure, good sealing and sensitive;
    3. Three-position solenoid valve has three central functions to choose from;
    4. The double-headed two-position solenoid valve has a memory function;
    5. The inner hole is processed by special process, the friction resistance is small, the starting air pressure is low, and the service life is long;
    6, no need to add lubrication;
    7. It can integrate the valve group with the base to save installation space;
    8, with a manual device, which is conducive to installation and commissioning;
    9, a variety of standard voltage levels are available.



    Product Name Model Type Material Working Voltage Operating Pressure Effective Area Power Consumption Insulation Grade
    Pneumatic Solenoid Valve 4V130C-06 2 Position 5 Way Aluminum Alloy DC12V DC24V AC110V AC220V 0.15-0.8MPa 12mm² AC:2.5VA DC:2.5W IP65



    200 Series 1/4'' Pneumatic Cylinder Valve 4V210-08 Working Pressure 0.15-0.8MPa



    200 Series 1/4'' Pneumatic Cylinder Valve 4V210-08 Working Pressure 0.15-0.8MPa



    200 Series 1/4'' Pneumatic Cylinder Valve 4V210-08 Working Pressure 0.15-0.8MPa



    Installation and usage

    1. Check whether the components are damaged during transportation before use, and then install and use;

    2. Please pay attention to the direction of gas flow and whether the tooth shape of the nozzle is correct during installation. The medium must be filtered by a 40um filter element;

    3. Please pay attention to whether the installation conditions meet the technical requirements (such as "voltage", "operating frequency", "working pressure", "operating temperature range", etc.), and then install and use;

    4. Pay attention to the direction of gas flow during installation,P is the inlet, A(B) is the working port, and R(S) is the exhaust port;

    5, try to avoid the use of vibration in the environment, and pay attention to low temperature antifreeze measures;

    6. When connecting the pipeline, please note that the winding of the stop drain belt shall not exceed the end face of the joint tooth. Please pay attention to removing dust, iron chips and other dirt in the pipeline joint to avoid impurities or foreign matters entering the valve body.

    7, please pay attention to dust, it is recommended to install muffler or muffler throttle valve in the exhaust port. Remove when not in use should be installed in the air inlet and outlet dust jacket.

    8, when the whole machine debugging, it is recommended to use the manual device debugging, and then debugging.
