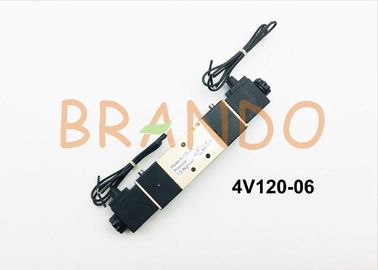

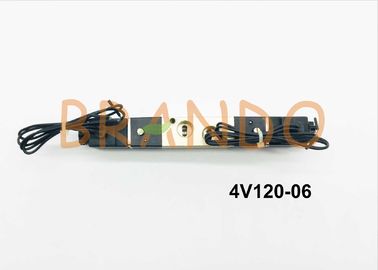

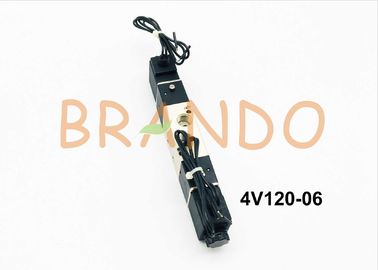

1/8 Inch Pilot Type Pneumatic Solenoid Valve 4V120-06 4V120 Series

1/8 Inch Pilot Type Pneumatic Solenoid Valve 4V120-06 4V120 Series

    • 1/8 Inch Pilot Type Pneumatic Solenoid Valve 4V120-06 4V120 Series
    • 1/8 Inch Pilot Type Pneumatic Solenoid Valve 4V120-06 4V120 Series
    • 1/8 Inch Pilot Type Pneumatic Solenoid Valve 4V120-06 4V120 Series
    • 1/8 Inch Pilot Type Pneumatic Solenoid Valve 4V120-06 4V120 Series
  • 1/8 Inch Pilot Type Pneumatic Solenoid Valve 4V120-06 4V120 Series

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: ISO、CE
    Model Number: 4V120-06

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pc
    Price: negotiation
    Packaging Details: inner boxes,cartons,pallets
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Size: 1/8'' Color: Black
    Type: Five-position Two-way Solenoid Valve Working Medium: 40 Micron Filtered Air
    Connection: Thread(NPT Working Temperature: 5-50℃

    1/8 Inch 4V120 Series Pilot Type Solenoid Pneumatic Vale 4V120-06



    Pilot mode: external and internal optional; Sliding column structure, good sealing, responsive; The inner hole is processed by special technology with small friction resistance, low starting pressure and long service life. No lubrication required; Can be integrated with the base valve set, saving installation space; Manual device is attached to facilitate installation and debugging; A variety of standard voltage grades are available.



    Model No. 4V120-06
    Positon Number Five-Positon Two-Way
    Working Pressure 0.15-0.8MPa
    Maximum pressure resistance 1200kpa
    Operating temperature -5-60℃
    Voltage range -15%~10%
    Energy consumption AC:2.5 VA DC:2.5w
    Protection rate IP 65
    Wiring form Connector type
    Maximum working frequency 5 cycles per Second

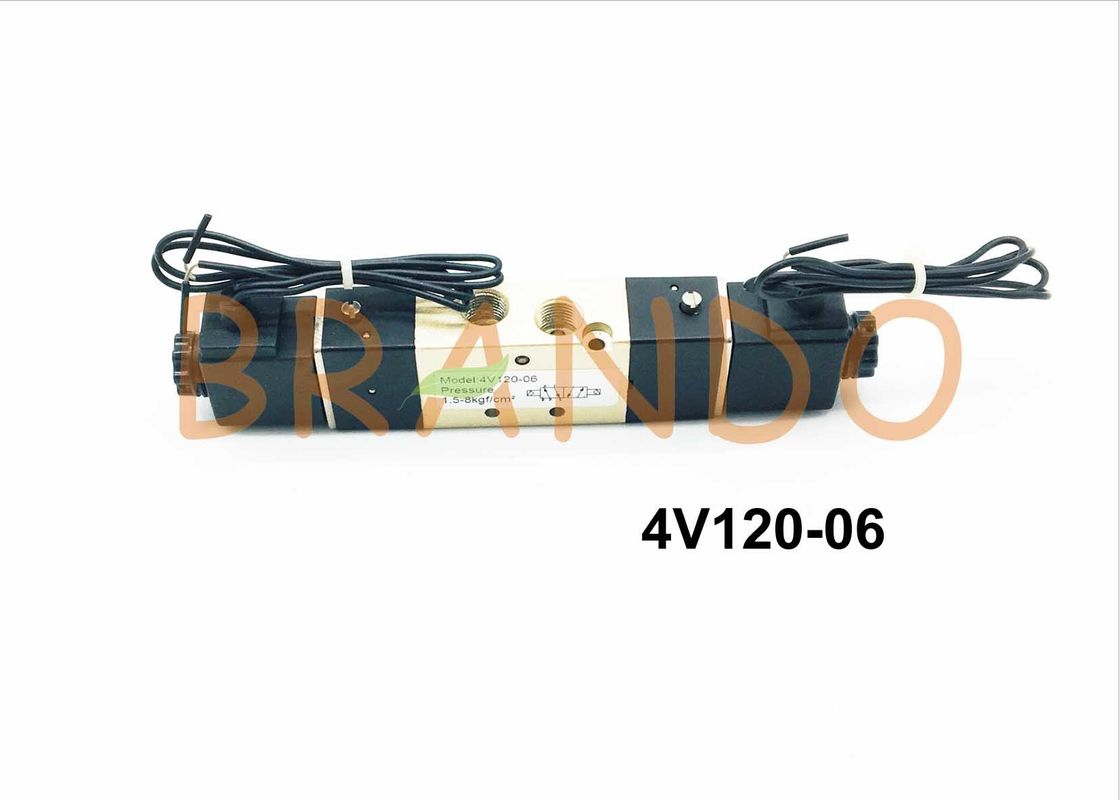

    1/8 Inch Pilot Type Pneumatic Solenoid Valve 4V120-06 4V120 Series



    1/8 Inch Pilot Type Pneumatic Solenoid Valve 4V120-06 4V120 Series



    Detailed Date of 4V120-06 in the Drawings for your reference



    1/8 Inch Pilot Type Pneumatic Solenoid Valve 4V120-06 4V120 Series





    The Installation and Usage

    1. Check whether the components are damaged during transportation before use, and then install and use;

    2. Please pay attention to the direction of gas flow and whether the tooth shape of the nozzle is correct during installation. The medium must be filtered by a 40um filter element;

    3. Please pay attention to whether the installation conditions meet the technical requirements (such as "voltage", "operating frequency", "working pressure", "operating temperature range", etc.), and then install and use;

    4. Pay attention to the direction of gas flow during installation,P is the inlet, A(B) is the working port, and R(S) is the exhaust port;

    5, try to avoid the use of vibration in the environment, and pay attention to low temperature antifreeze measures;

    6. When connecting the pipeline, please note that the winding of the stop drain belt shall not exceed the end face of the joint tooth. Please pay attention to removing dust, iron chips and other dirt in the pipeline joint to avoid impurities or foreign matters entering the valve body.

    7, please pay attention to dust, it is recommended to install muffler or muffler throttle valve in the exhaust port. Remove when not in use should be installed in the air inlet and outlet dust jacket.

    8, when the whole machine debugging, it is recommended to use the manual device debugging, and then debugging.



    The Working Principle of 4V120-06

    Using compressed air driven actuators in combination of multiple sets of pneumatic piston movement and force to beam and the characteristics of the curve track, drive tubular spindle rotation, compressed air disks to each cylinder, changed the direction of gas in and out of position to change the direction of spindle rotation, according to the requirement of the load (valve) the required rotation torque, adjustable cylinder combination number, drives the work load (valve).

    Two five-way solenoid valve which is equipped with double-acting pneumatic actuators, two is two position control, on-off, there are five tunnel ventilation, 45 is one connected with gas source, two external and double-acting cylinder chamber in and out of the port connection, two with the internal chamber in and out of the port in succession, you may refer to the working principle of concrete working principle of the double-acting pneumatic actuators.
