Air Water Oil Gas Pneumatic Solenoid Valve Normal Close With Copper Coil

Air Water Oil Gas Pneumatic Solenoid Valve Normal Close With Copper Coil

    • Air Water Oil Gas Pneumatic Solenoid Valve Normal Close With Copper Coil
    • Air Water Oil Gas Pneumatic Solenoid Valve Normal Close With Copper Coil
    • Air Water Oil Gas Pneumatic Solenoid Valve Normal Close With Copper Coil
    • Air Water Oil Gas Pneumatic Solenoid Valve Normal Close With Copper Coil
  • Air Water Oil Gas Pneumatic Solenoid Valve Normal Close With Copper Coil

    Product Details:

    Place of Origin: CHINA
    Brand Name: BRANDO
    Certification: ISO
    Model Number: 2W-250-25

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: Box,Carton
    Delivery Time: 3-5Work Days
    Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
    Supply Ability: 7000 pcs per month
    Contact Now
    Detailed Product Description
    Port Size: 1" Material: Brass
    Type: Normal Colse Working Medium: Air Water Oil Gas
    Voltage: DC12V DC24V AC24V AC110V AC220V AC380V Pressure: 0-0.7MPa

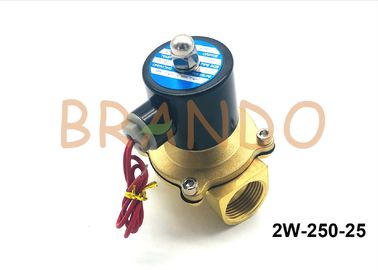

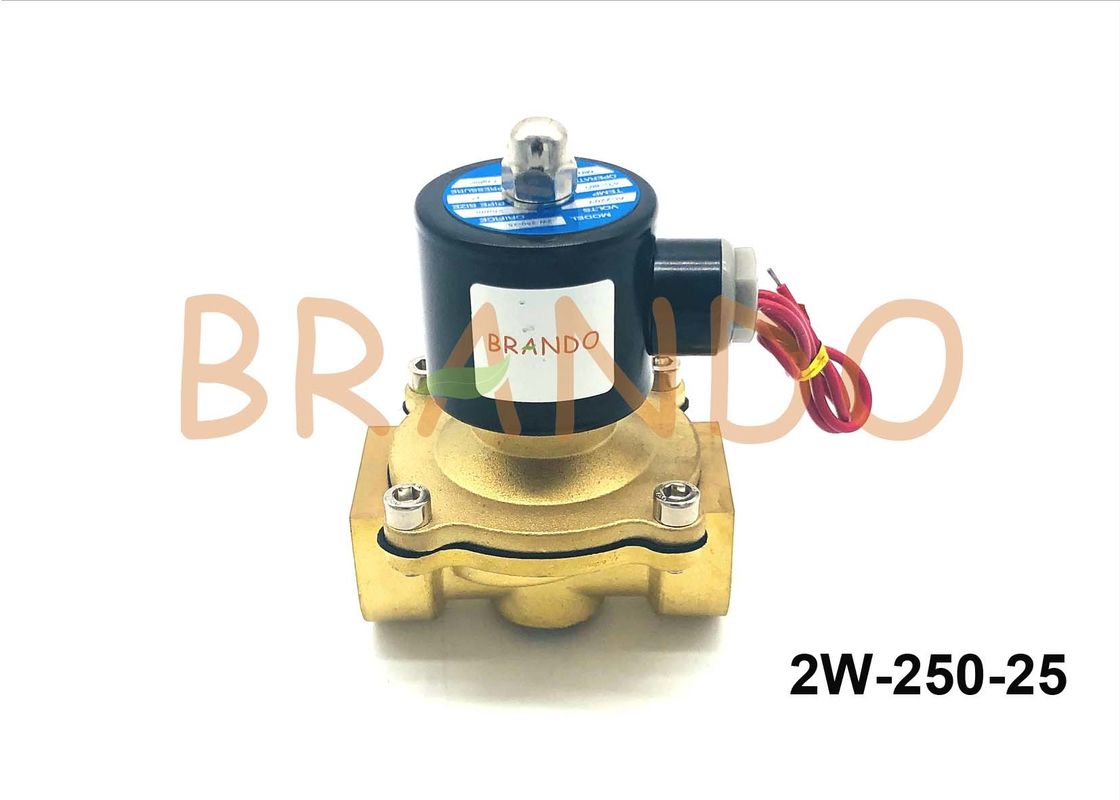

    Brass Body 1 Inch Water Solenoid Valve Normal Close With Copper Coil 2W-250-25



    The 2S series electromagnetic water valve body is made of brass and is suitable for various industries. We offer various sizes and specifications, AC220V DC24V DC12V voltage for you to choose.



    Production of solenoid valves, we are professional.If you want to purchase other types solenoid valve or pneumatic pulse valve,you can browse our website and you will find a new land.

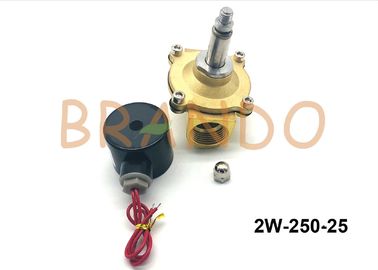

    structure

    1.Hexagonal fixing screw cap

    2.Metal coil protection cover

    3.Copper Coil

    4.Hexagonal set screw

    5.Brass body

    6.Wire protection cover

    7.Metal spool

    8.Coil gasket



    Specification

    Model 2W250-25
    Fluid Air/Water/Oil
    Action Mode Pilot-operated Type
    Type Normal Closed
    Port Diameter(mm^2) 25
    CV Value 12
    Port Size G1
    Fluid Viscosity Under 20CS
    Working Pressure Water/Oil: 0-0.5MPa Air: 0-0.7MPa
    Proof Pressure 1.0MPa
    Temperature -5-85℃
    Working Voltage Range ±10%
    Material Body Brass
    Material Seal NBR
    Coil Power 20VA



    Size of 2W Series Solenoid Valve

    Model 2W160-10 2W160-15 2W200-20 2W250-25 2W350-35 2W400-40 2W500-50
    Orifice Size(mm) 16mm 16mm 20mm 25mm 35mm 40mm 50mm
    Port Size G3/8" G1/2" G3/4" G1" G 1 1/4" G1 1/2" G2"
    CV Value 4.8 4.8 7.6 12 24 29 48



    2W Series Solenoid Valve

    Air Water Oil Gas Pneumatic Solenoid Valve Normal Close With Copper Coil



    Dimension Drawing of 2W-250-25

    Air Water Oil Gas Pneumatic Solenoid Valve Normal Close With Copper Coil

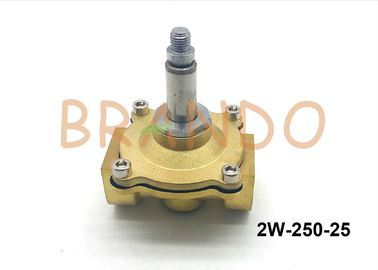

    Details of 2W-250-25

    Air Water Oil Gas Pneumatic Solenoid Valve Normal Close With Copper Coil

    Air Water Oil Gas Pneumatic Solenoid Valve Normal Close With Copper Coil



    How to choose according to different job needs?

    1. When the solenoid valve needs to be closed for a long time and the closing time is longer than the opening time, the normally closed type is selected.

    2. When the solenoid valve needs to be opened for a long time and the opening time is longer than the closing time, select the normally open type.

    3.When it is necessary to turn on for a long time and close it for a long time, select the normally open normally closed type.

    4.Some conditions for safety protection, such as furnace flame monitoring, can not be selected for normal opening, should be selected for long-term energization type



    How to judge whether the coil is working or burned out?

    1. Measure the resistance. If the resistance is 0 or infinite, the coil is short-circuited or burned out.

    2. Take the iron screwdriver without magnetic, close to the nut on the coil. If there is magnetic adsorption after the coil is energized, the coil will work normally.



    please care the products details at our website, any confuse please contact us or Note your request online. Big quantity purchase ,please contact our online service to ask more economic shipping way or discuss the more pretty price.



    Wait our inquiry!
