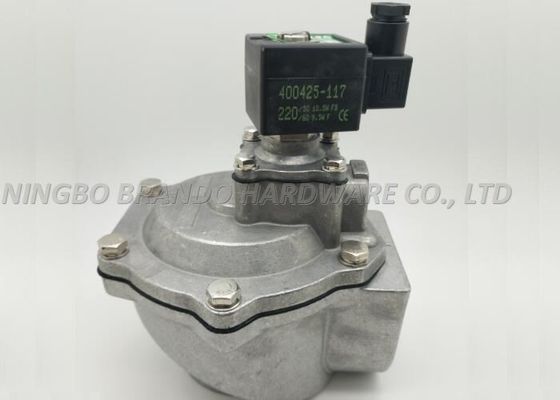

Right Angle Type Pneumatic Pulse Valve , 1.5" Dust Collector Valves SCG353A047

Right Angle Type Pneumatic Pulse Valve , 1.5" Dust Collector Valves SCG353A047

    • Right Angle Type Pneumatic Pulse Valve , 1.5" Dust Collector Valves SCG353A047
    • Right Angle Type Pneumatic Pulse Valve , 1.5" Dust Collector Valves SCG353A047
    • Right Angle Type Pneumatic Pulse Valve , 1.5" Dust Collector Valves SCG353A047
    • Right Angle Type Pneumatic Pulse Valve , 1.5" Dust Collector Valves SCG353A047
    • Right Angle Type Pneumatic Pulse Valve , 1.5" Dust Collector Valves SCG353A047
  • Right Angle Type Pneumatic Pulse Valve , 1.5" Dust Collector Valves SCG353A047

    Product Details:

    Place of Origin: China
    Brand Name: BRANDO
    Certification: CE, ISO
    Model Number: SCG353A047

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: USD5.00 to 50.00
    Packaging Details: Each piece in pvc bag, then in box, then in carton, then packed into pallet
    Delivery Time: 2 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 9000 pcs per month
    Contact Now
    Detailed Product Description
    Body: Aluminium Core Tube: SS304
    Core: 430FR Spring: SS304
    Diaphragm: NBR Seal And Disc: NBR
    Coil: 400425-117 Connector: DIN43650A

    High Flow Angle Type 1.5" Threaded SCG353A047 0.35-0.85Mpa NBR Pneumatic Pulse Jet Valve



    Pulse Jet Valve SCG353A047 SUITABLE FOR
    Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.

    High purity Aluminum Alloy casting body, the top of NBR diaphragm, make the diaphragm has high tensile strength, ageing resistance and low wear, the electromagnetic pulse valve injection is longer than that of 1 million or three to five years with no damage.
    All high-quality imported finished diaphragm, diaphragm assembly in the manufacturing process all checks, qualified and then into the assembly line. Each finished valve is tested by ventilation.

    Electromagnetic pulse valve coil is higher than the national standard grade insulation injection in the protection class is IP65 full filling, full copper enameled wire, coil number higher than the national standard, ensure the electromagnetic pulse valve 6 million is energized is not damaged, the electromagnetic coil can rotate 360 DEG in the pulse valve, the junction box can rotate 90 degrees to 4 x can be installed to prevent exposure in the open when rain enters, greatly facilitate the installation of different angles.



    SCG353A047 FEATURES
    • The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation

    • The high flow, angle type bodies in combination with the special main diaphragm assemblies give theunique operating features required for dust collector service applications
    The design with integral compression fittings will facilitate installation because there is no need for threaded piping
    The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
    • Integral pilot operated valves satisfy all relevant EC directives

    Specifications of Pulse Valve SCG353A047
    Ordering Code Port Size Orifice Flow Value Coil Type
    G thread mm m³/h l/min
    SCG353A047 1 1/2" 52 46 768 400425
    SCG353A050 2" 66 77 1290 400425
    SCG353A051 2 1/2" 66 92 1540 400425
    SCG353.060 3" 75 170 2833 400425



    Delivery About Pulse Valve SCG353A047
    1. If the products we have in store, we will send it out ASAP after payment.
    2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
    3. Also we can send by your delivery acount if you want.
    4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.



    Dimension of Pulse Valve SCG353A047:

    Right Angle Type Pneumatic Pulse Valve , 1.5" Dust Collector Valves SCG353A047
