2 / 2 Way Customized Stainless Steel Valve Stems Male Thread With Double Spring

2 / 2 Way Customized Stainless Steel Valve Stems Male Thread With Double Spring

    • 2 / 2 Way Customized Stainless Steel Valve Stems Male Thread With Double Spring
    • 2 / 2 Way Customized Stainless Steel Valve Stems Male Thread With Double Spring
    • 2 / 2 Way Customized Stainless Steel Valve Stems Male Thread With Double Spring
    • 2 / 2 Way Customized Stainless Steel Valve Stems Male Thread With Double Spring
    • 2 / 2 Way Customized Stainless Steel Valve Stems Male Thread With Double Spring
  • 2 / 2 Way Customized Stainless Steel Valve Stems Male Thread With Double Spring

    Product Details:

    Place of Origin: Ningbo CHINA
    Brand Name: BRANDO
    Certification: CE
    Model Number: BAPC210029007

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: US D 2-10 per pc
    Packaging Details: Decade a box,Exported carton
    Delivery Time: 6 work days
    Payment Terms: D/A, T/T, Western Union, L/C, MoneyGram
    Supply Ability: 40000 pcs per half month
    Contact Now
    Detailed Product Description
    Tube Height: 29mm Connection: Thread
    Type: 2/2 Way Material: Stainless Steel
    Tube OD: 10.0mm Seal: NBR

    2/2 Way Customized,Male Thread Solenoid Stem/Guide Core With Double Spring



    Product Feauture



    1.With a nut and a diaphragm that fix upper screw thread

    2.Two way two position normally closed plunger tube assembly

    3.Cylindrical movable core with a vent.There are two internal springs of movable core.One is long and diameter is small.Another one is short but big.The big one coats the small one and form a operated spring to promote the spring force when the valve is not powered



    Specification and Application



    Dimension Application
    Brand:BRANDO

    Dental equipment

    No.BAPC210029007 Dust collector valve
    Voltage:AC/DC

    Automatic vending machine

    Standard or no:Standard 4.Pulse device

    Tube out diameter:10.0mm

    Pneumatic equipment
    Tube height:29.0mm Forged brass solenoid valve
    Item weight:35g Evr solenoid valve
    Thread height:6.1mm Pipe switch
    Movable core height:23.6mm Air condition device/Air suspension valve
    Solenoid armature height:44.5mm Life water and industry water supply
    Depth:23.8mm Hyraulic industry
    Material:stainless steel and NBR Refrigeration device
    Inner diameter:9mm Air suspension
    Seat diameter:11mm Auto drain industry



    Material we use



    Rustproof and corrosion0resistant material with high magnetoconductivity and low remanence

    Stainless steel SS304 and Nitrile Butadiene Rubber

    Special specification can be done with your drawing or sample



    Installation Instruction



    1.Pay attention to the arrow on the valve body,it should be consistent with the media flow direction. Do not install in places where there is direct drip or splash.Meanwhile,Solenoid valve should be installed vertically.

    2, solenoid valve should be guaranteed to operate normally within the 15%-10% fluctuation range of the supply voltage.

    3. After installing the solenoid valve, there should be no reverse pressure difference in the pipeline. And it needs to be energized several times to make it suitable for temperature before it can be put into operation. 4. Solenoid valve should be thoroughly cleaned before installation.And the medium should be free of impurities. Filter before valve.

    5, when the solenoid valve malfunctions or cleaning, to ensure that the system continues to operate, we should install bypass devices.





    Warranty



    1.Provide instruction and guideness for customers

    2.Quality guarantee:With any problem just contact with us

    3.Provide warranty services on broken products

    4.Entitle you to a replacement or refund in a year

    5.Any other request,just contact us and talk with us



    Kit Pacture

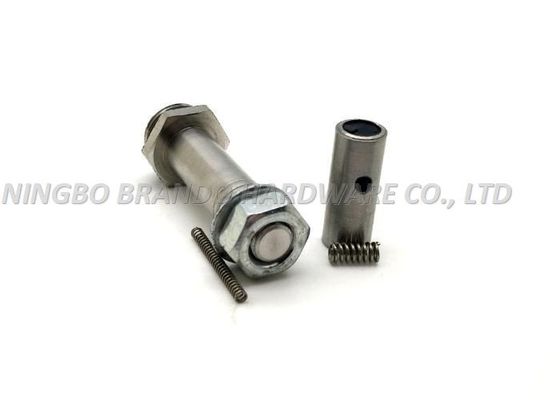

    2 / 2 Way Customized Stainless Steel Valve Stems Male Thread With Double Spring
