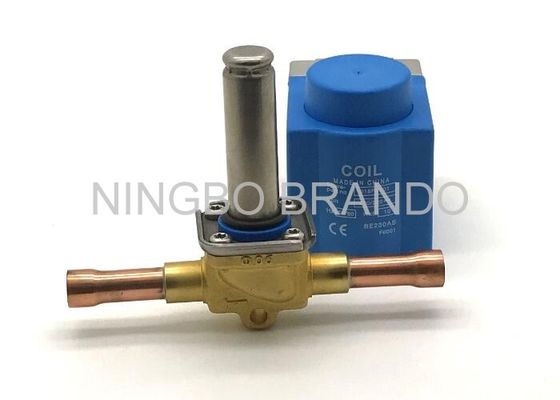

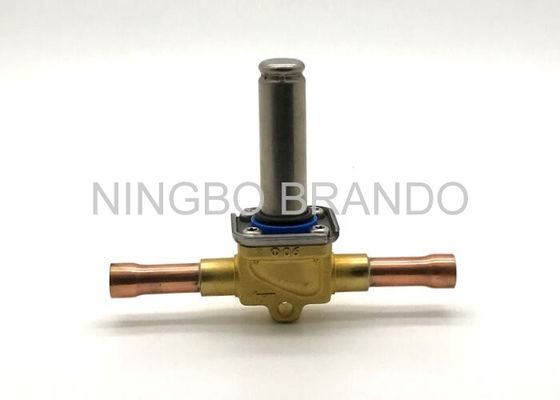

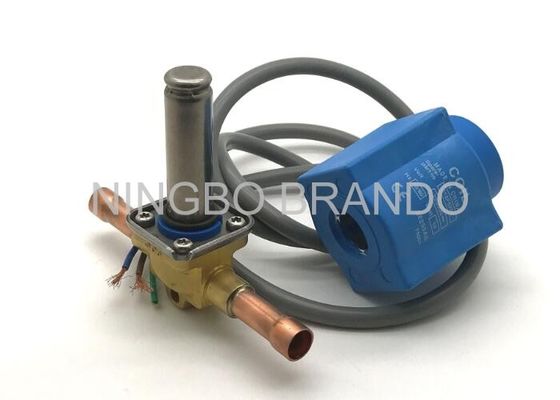

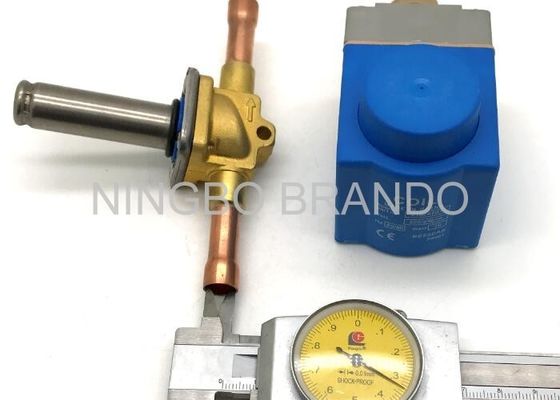

Direct Operated EVR6-038S Hot Gas Solenoid Valve Applicable for Freezer And Cold Store And Air Conditioning

China Direct Operated EVR6-038S Hot Gas Solenoid Valve Applicable for Freezer And Cold Store And Air Conditioning supplier
Direct Operated EVR6-038S Hot Gas Solenoid Valve Applicable for Freezer And Cold Store And Air Conditioning supplier Direct Operated EVR6-038S Hot Gas Solenoid Valve Applicable for Freezer And Cold Store And Air Conditioning supplier Direct Operated EVR6-038S Hot Gas Solenoid Valve Applicable for Freezer And Cold Store And Air Conditioning supplier Direct Operated EVR6-038S Hot Gas Solenoid Valve Applicable for Freezer And Cold Store And Air Conditioning supplier

Large Image :  Direct Operated EVR6-038S Hot Gas Solenoid Valve Applicable for Freezer And Cold Store And Air Conditioning

Product Details:

Place of Origin: CHINA
Brand Name: BRANDO
Certification: CE
Model Number: EVR6-038S

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: negotiation
Packaging Details: Inner box, Carton, Pallet
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Application: Refrigeration Compressor Group Orifice: 3/8"; 10mm
Connection: 3/8" ODF Voltage: 380V AC; 220V AC

Direct Operated EVR6-038S Solenoid Valve Applicable for Freezer And Cold Store And Air Conditioning



EVR6-038S Solenoid Valve Features:

1, Mostlt is normally closed

2, The maximum design temperature is 105℃

3, 100-mesh filter is contained at the suction end, which is replaceable

4, 24w high power solenoid and max. operating pressure differential

5, MOPD is 4.2 Mpa

6, The solenoid coil with various power supply for choice

7, The clamped joint solenoid is easy to be mounted or dismounted only with one screwdriver

8, The sealed solenoid has a long service life and it can be used even in an adverse circumstance



Model EVR solenoid valve is direct-operated or servo-operated valve, which is applicable to one direction flow;

Model EVR solenoid valve is used on the liquid, air suction or hot vapor piping of a freezer, cold store and air condintioning unit;

The valve seat of mode EVR solenoid valve is well sealed with perfect sealing performance;

Model EVR solenoid valves with various voltage solenoids are available;

Both packed and separated Model EVR solenoid valves are available and it means the valve body could be supplied separately from the solenoid.



EVR3-038S Refrigeration Solenoid Valve Technical Datas:

Direct Operated EVR6-038S Hot Gas Solenoid Valve Applicable for Freezer And Cold Store And Air Conditioning



Model Connection H1 H2 H4 L L2 KV Factor (m³/h)
SAE inlet/outlet ODF inlet/outlet (Solder) Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm
EVR3-014 EVR3-014S 1/4 6 0.5 14 2.8 71     4.0 102 0.3 7 0.27
EVR3-038 EVR3-038S 3/8 10 0.5 14 2.9 73     4.6 117 0.4 10
EVR6-038 EVR6-038S 3/8 10 0.5 14 3.1 79     4.4 111 0.4 10 0.8
EVR6-012 EVR6-012S 1/2 12.8 0.5 14 3.1 79     5.0 127 0.4 10
EVR10-012 EVR10-012S 1/2 12.8 0.6 16 3.1 79     5.0 127 0.4 10 1.9
EVR10-058 EVR10-058S 5/8 16 0.6 16 3.1 79     6.3 160 0.5 12
  EVR15-058S 5/8 16 0.7 19 3.4 86     6.9 176 0.5 12 2.6
  EVR15-078S 7/8 22 0.7 19 3.4 86     6.9 176 0.7 17
  EVR20-078S 7/8 22 0.8 20 3.5 90     7.5 191 0.7 17 5
  EVR20-118S 1 1/8 28.8 0.8 20 3.5 90     8.4 214 0.8 22
  EVR22-138S 1 3/8 35 0.8 20 3.5 90     11.1 281 1 25 6
  EVR25-118S 1 1/8 28.8 1.5 38 5.4 138 2.8 72 10.0 256 0.8 22 10
  EVR25-138S 1 3/8 35 1.5 38 5.4 138 2.8 72 11.0 281 1 25
  EVR32-138S 1 3/8 35 1.9 47 4.4 111 2.1 53 11.0 281 1 25 16
  EVR32-158S 1 5/8 42 1.9 47 4.4 111 2.1 53 11.0 281 1.1 29
  EVR40-158S 1 5/8 42 1.9 47 4.4 111 2.1 53 11.0 281 1.1 29 25
  EVR40-218S 2 1/8 54 1.9 47 4.4 111 2.1 53 11.0 281 1.3 34



EVR Solenoid Valve Parameters:

Type The pressure difference when the solenoid valve can be activated, using standard coil (△bar) Media Temperature Max working pressure (Mpa) Kv value (m³/h)
least The maximum working pressure difference, MOPD (liquid)
10 W (AC) 12W (AC)
EVR3 0.0 21 25 -40~105 3.5 0.27
EVR6 0.05 21 25 -40~105 3.5 0.8
EVR10 0.05 21 25 -40~105 3.5 1.9
EVR15 0.05 21 25 -40~105 3.5 2.6
EVR20 0.05 21 25 -40~105 3.2 5.0
EVR22 0.05 21 25 -40~105 3.2 6.0
EVR25 0.20 21 25 -40~105 3.2 10.0
EVR32 0.20 21 25 -40~105 3.2 16.0
EVR40 0.20 21 25 -40~105 3.2 25.0



1, Kv value is the water flow in m³/h at a pressure drop across valve of 0.1Mpa, p=1000kg/m³

2, MOPD tor meda in gat from is opprax 0.1 M pagreater



EVR Solenoid Valve Product Introduction:

Our plunger solenoid valve are direct or servo operated solenoid valve for liquid, suction, and hot gas lines with fluorinated refrigerants. EVR plunger solenoid valve are supplied complete or as seprate components, i.e. valve body, coil and flanges, if required, can be ordered seprately.





Welcome your enquiry, we will response at once.

If you only need repair parts, we also can supply.
